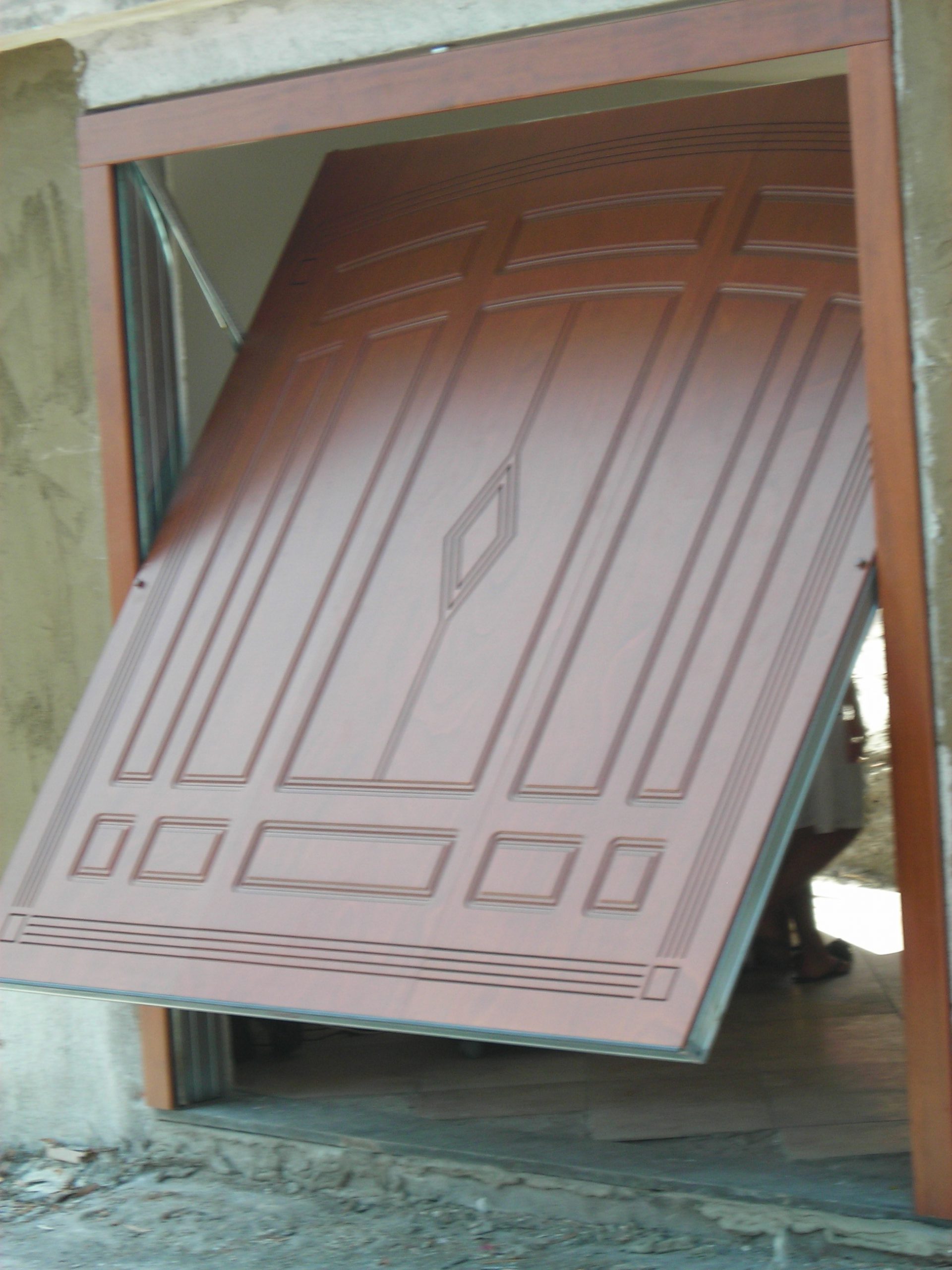

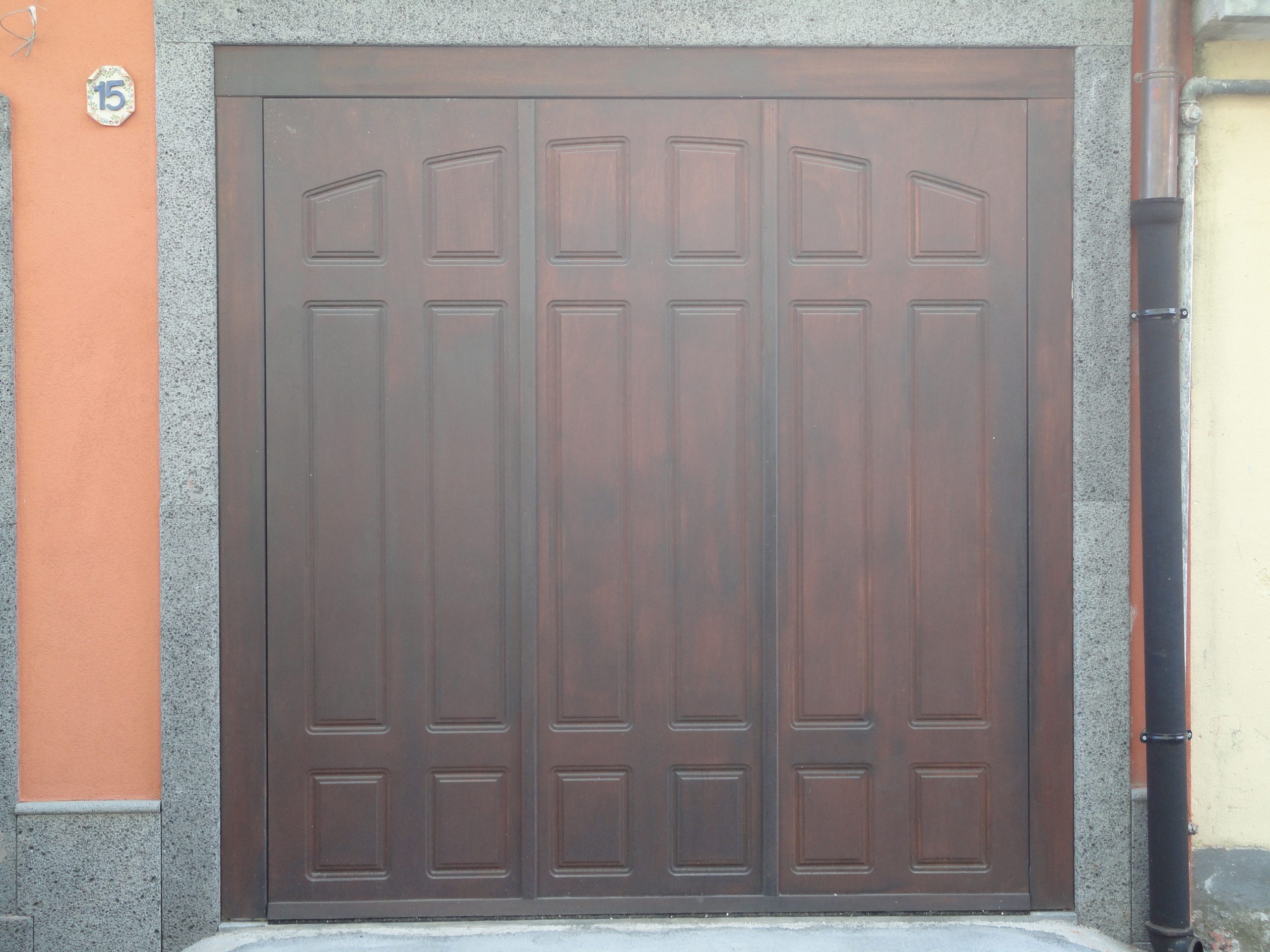

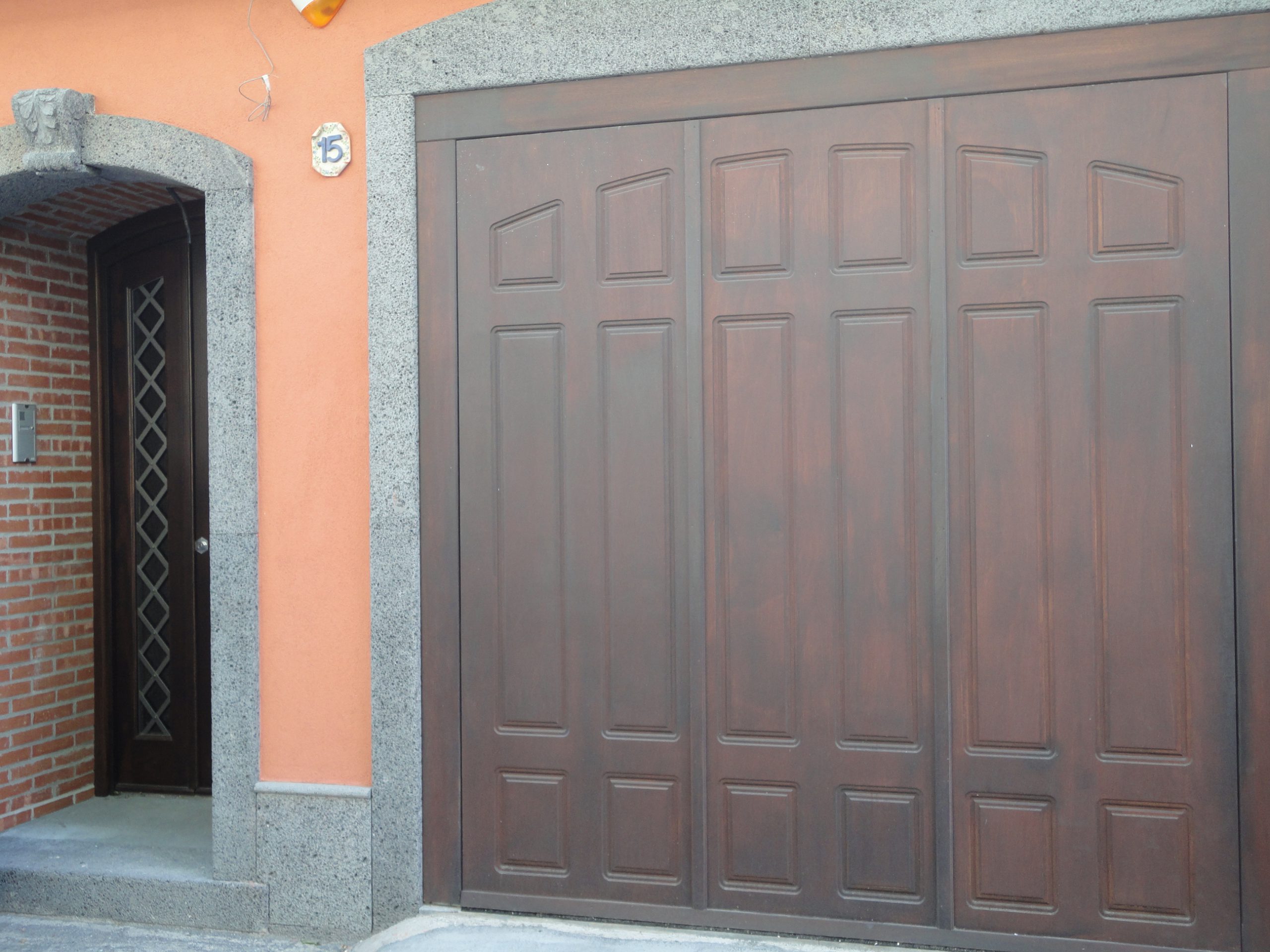

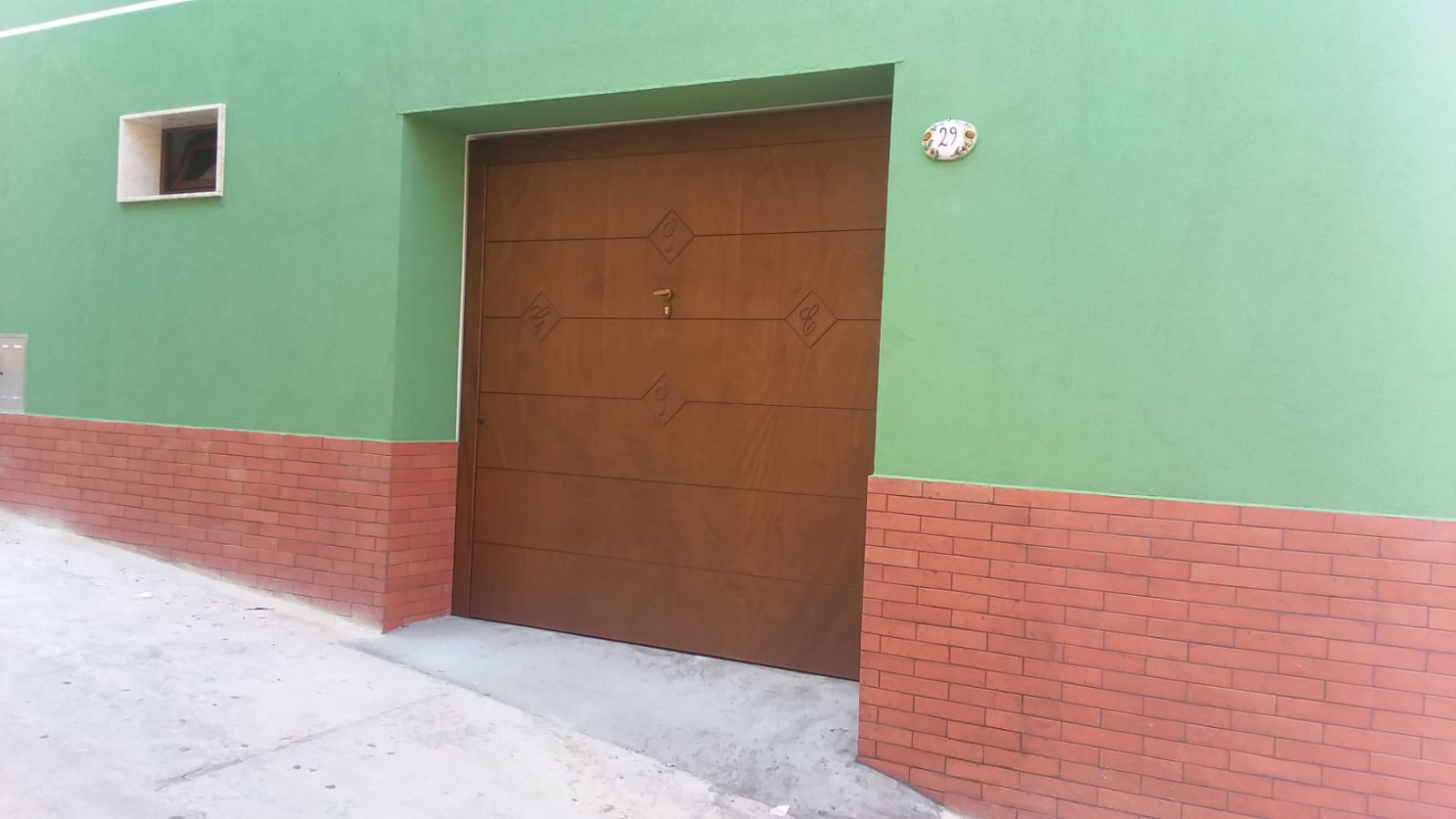

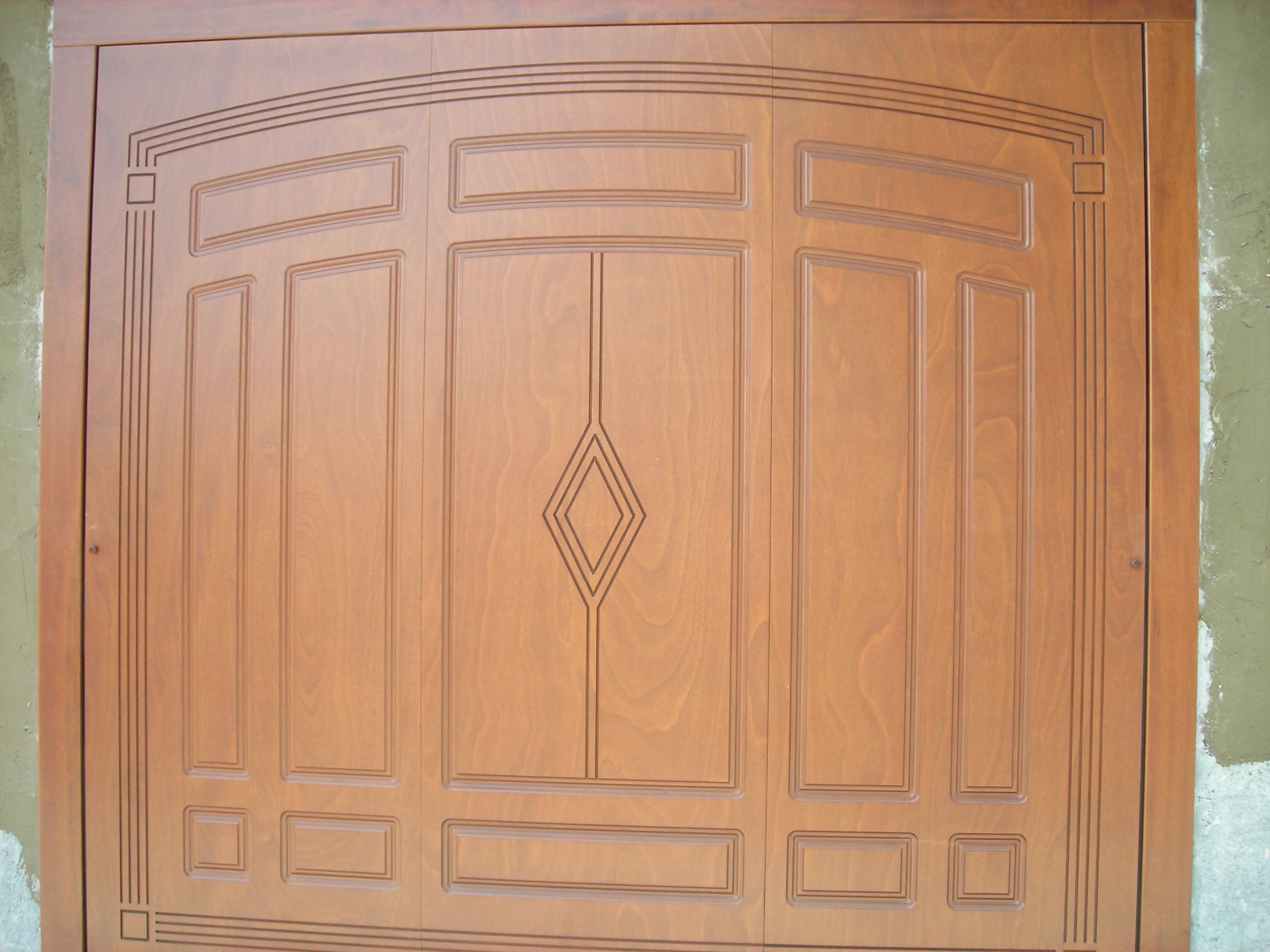

The wood trim line is tailor-made in different colours and models.
The metal structure is coated by sea wood okoumé multilayer.

The overhead door is always supplied with a CE plate with a serial number, installation manual, use-maintenance-security and declaration of DoP Performance in conformity with the new Regulation on the Construction Materials 305/2011 CPR and in compliance with the harmonized standard EN 13241-1.

FEATURES

  • The frame is manufactured with galvanized strengthened steel profile
  • Side rubber seal
  • Counterweight sliding system
  • The frame of the curtain is manufactured with wood okum panels, upon colour availability
  • The metal parts are painted with epoxy powders
    dark brown or RAL colors required
  • Pantographing can be provided in the available
    or customized models, h max 2500 mm
  • Version with non-protruding mobile door
  • Manual operation with possible motorization, on request
  • Internal panel to paint
  • Installation manual
  • Certified product in compliance with UNI EN 13241 standards

Installation Schemes

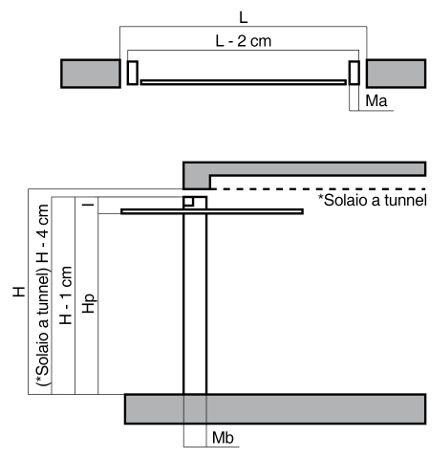

Protruding version in light

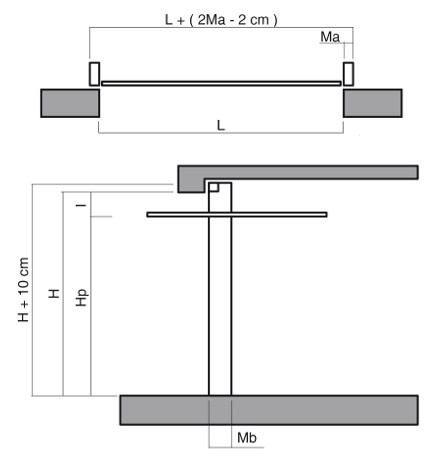

Protruding version beyond light

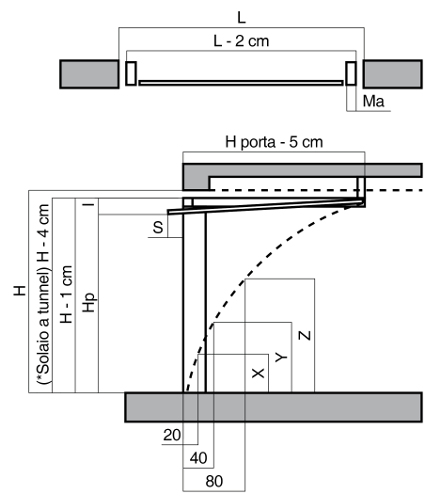

Non-protruding version

All the measures are approximative.

Optional

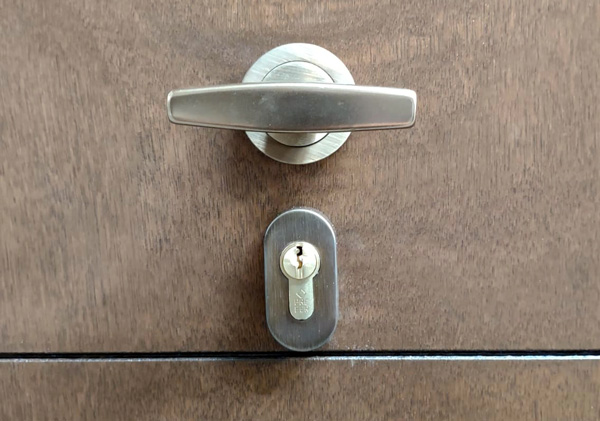

Silver or bronze handle and doorknob

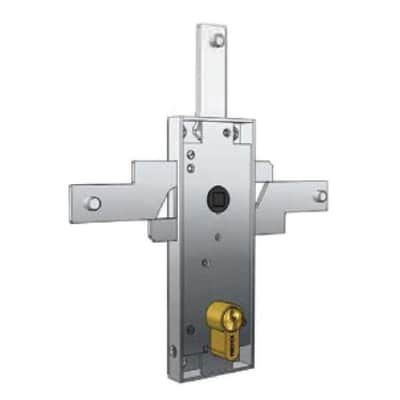

Lock with 3 points
of closure

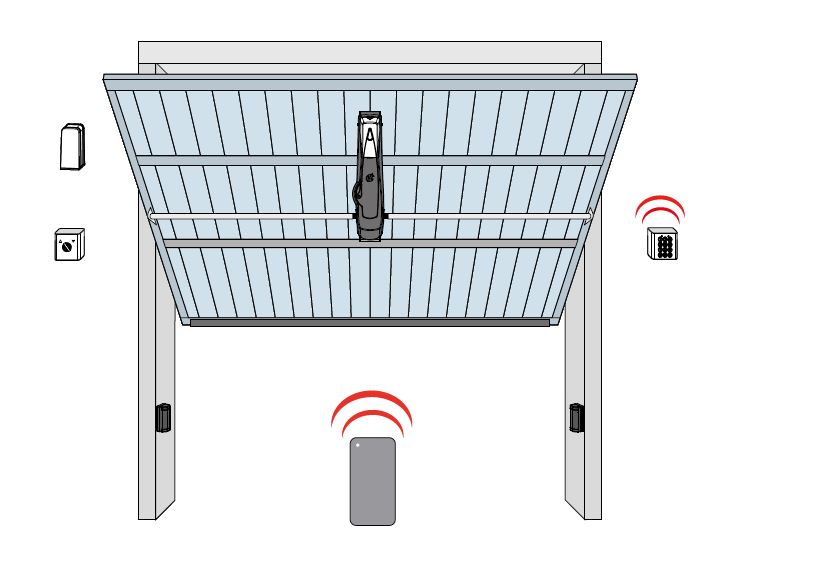

Automation

Pantographing (on request)
